The Ultimate AI and Graphics Performance for Desktop Workstations

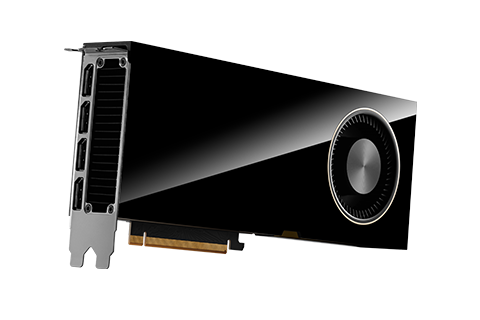

RTX 6000 Ada Generation

INQUIRE NOW
18176

CUDA Cores

568

Tensor Cores

142

RT Cores

Ada Lovelace Architecture

TSMC N4 Manufacturing Process
DirectX 12 Ultimate, Shader Model 6.8
OpenCL 3.0, OpenGL 4.6, Vulkan 1.3
CUDA Compute Capability 8.9
DLSS 3

GPU Memory

48GB GDDR6 ECC Memory
960GB/s Memory Bandwidth
384-bit Memory Interface

Performance Metrics

91.1 TFLOPS Single Precision
210.6 TFLOPS RT Core
1457.0 TFLOPS Tensor

Media Engine

3x NVENC Encode Engine
3x NVDEC Decode Engine
AV1 Hardware Decode & Encode Support

Virtualization Support

NVIDIA vPC/vApps
NVIDIA RTX Virtual Workstation

Display Connectors

4x DisplayPort 1.4a

Interface

PCI Express 4.0 x16
Dual Slot, Full Height

Power Consumption

300 W Total Board Power
Single CEM5 16-pin Connector

Accelerate AI and Graphics Workloads

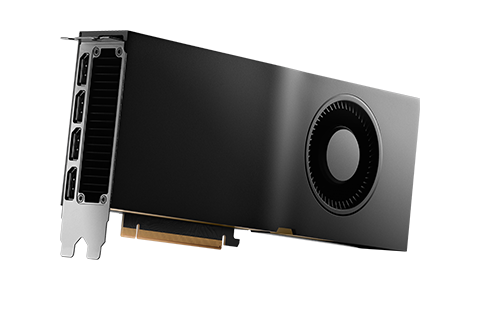

RTX 5000 Ada Generation

INQUIRE NOW
12800

CUDA Cores

400

Tensor Cores

100

RT Cores

Ada Lovelace Architecture

TSMC N4 Manufacturing Process
DirectX 12 Ultimate, Shader Model 6.8
OpenCL 3.0, OpenGL 4.6, Vulkan 1.3
CUDA Compute Capability 8.9
DLSS 3

GPU Memory

32GB GDDR6 ECC Memory
576GB/s Memory Bandwidth
256-bit Memory Interface

Performance Metrics

65.3 TFLOPS Single Precision
151.0 TFLOPS RT Core
1044.4 TFLOPS Tensor

Media Engine

2x NVENC Encode Engine
2x NVDEC Decode Engine
AV1 Hardware Decode & Encode Support

Virtualization Support

NVIDIA vPC/vApps
NVIDIA RTX Virtual Workstation

Display Connectors

4x DisplayPort 1.4a

Interface

PCI Express 4.0 x16
Dual Slot, Full Height

Power Consumption

250 W Total Board Power
Single CEM5 16-pin Connector

Ignite Creative Innovation

RTX 4500 Ada Generation

INQUIRE NOW
7680

CUDA Cores

240

Tensor Cores

60

RT Cores

Ada Lovelace Architecture

TSMC N4 Manufacturing Process
DirectX 12 Ultimate, Shader Model 6.8
OpenCL 3.0, OpenGL 4.6, Vulkan 1.3
CUDA Compute Capability 8.9
DLSS 3

GPU Memory

24GB GDDR6 ECC Memory
432GB/s Memory Bandwidth
192-bit Memory Interface

Performance Metrics

39.6 TFLOPS Single Precision
91.6 TFLOPS RT Core
634.0 TFLOPS Tensor

Media Engine

2x NVENC Encode Engine
2x NVDEC Decode Engine
AV1 Hardware Decode & Encode Support

Display Connectors

4x DisplayPort 1.4a

Interface

PCI Express 4.0 x16
Dual Slot, Full Height

Power Consumption

210 W Total Board Power
Single CEM5 16-pin Connector

The Ultimate Single-Slot GPU for Professionals

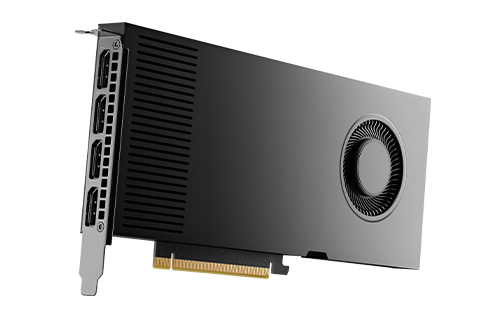

RTX 4000 Ada Generation

INQUIRE NOWBuy Now
6144

CUDA Cores

192

Tensor Cores

48

RT Cores

Ada Lovelace Architecture

TSMC N4 Manufacturing Process
DirectX 12 Ultimate, Shader Model 6.8
OpenCL 3.0, OpenGL 4.6, Vulkan 1.3
CUDA Compute Capability 8.9
DLSS 3

GPU Memory

20GB GDDR6 ECC Memory
360GB/s Memory Bandwidth
160-bit Memory Interface

Performance Metrics

26.7 TFLOPS Single Precision
61.8 TFLOPS RT Core
427.6 TFLOPS Tensor

Media Engine

2x NVENC Encode Engine
2x NVDEC Decode Engine
AV1 Hardware Decode & Encode Support

Display Connectors

4x DisplayPort 1.4a

Interface

PCI Express 4.0 x16
Single Slot, Full Height

Power Consumption

130 W Total Board Power
Single CEM5 16-pin Connector

Powerful Performance in a Compact Package

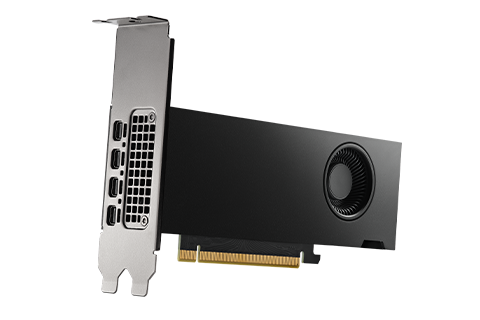

RTX 4000 SFF Ada Generation

INQUIRE NOWBuy Now
6144

CUDA Cores

192

Tensor Cores

48

RT Cores

Ada Lovelace Architecture

TSMC N4 Manufacturing Process
DirectX 12 Ultimate, Shader Model 6.8
OpenCL 3.0, OpenGL 4.6, Vulkan 1.3
CUDA Compute Capability 8.9
DLSS 3

GPU Memory

20GB GDDR6 ECC Memory
280GB/s Memory Bandwidth
160-bit Memory Interface

Performance Metrics

19.2 TFLOPS Single Precision
44.3 TFLOPS RT Core
306.8 TFLOPS Tensor

Media Engine

2x NVENC Encode Engine
2x NVDEC Decode Engine
AV1 Hardware Decode & Encode Support

Display Connectors

4x Mini DisplayPort 1.4a

Interface

PCI Express 4.0 x16
Dual Slot, Half Height

Power Consumption

70 W Total Board Power
No Power Connector Required

Unleashing RTX Power for Every Workstation

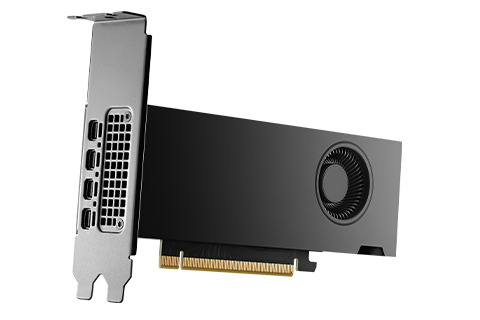

RTX 2000 Ada Generation

INQUIRE NOW
2816

CUDA Cores

88

Tensor Cores

22

RT Cores

Ada Lovelace Architecture

TSMC N4 Manufacturing Process
DirectX 12 Ultimate, Shader Model 6.8
OpenCL 3.0, OpenGL 4.6, Vulkan 1.3
CUDA Compute Capability 8.9
DLSS 3

GPU Memory

16GB GDDR6 ECC Memory
224GB/s Memory Bandwidth
128-bit Memory Interface

Performance Metrics

12.0 TFLOPS Single Precision
27.7 TFLOPS RT Core
191.9 TFLOPS Tensor

Media Engine

1x NVENC Encode Engine
1x NVDEC Decode Engine
AV1 Hardware Decode & Encode Support

Display Connectors

4x Mini DisplayPort 1.4a

Interface

PCI Express 4.0 x8
Dual Slot, Half Height

Power Consumption

70 W Total Board Power
No Power Connector Required
